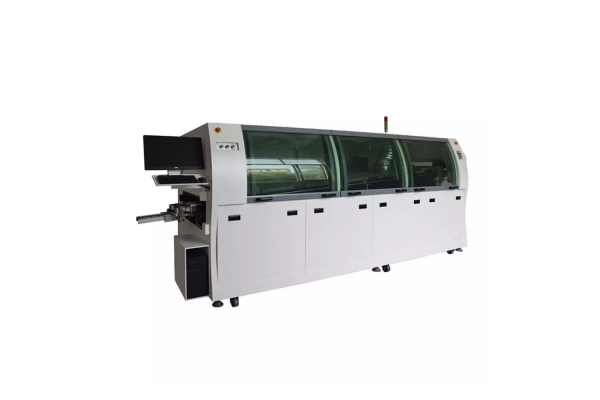

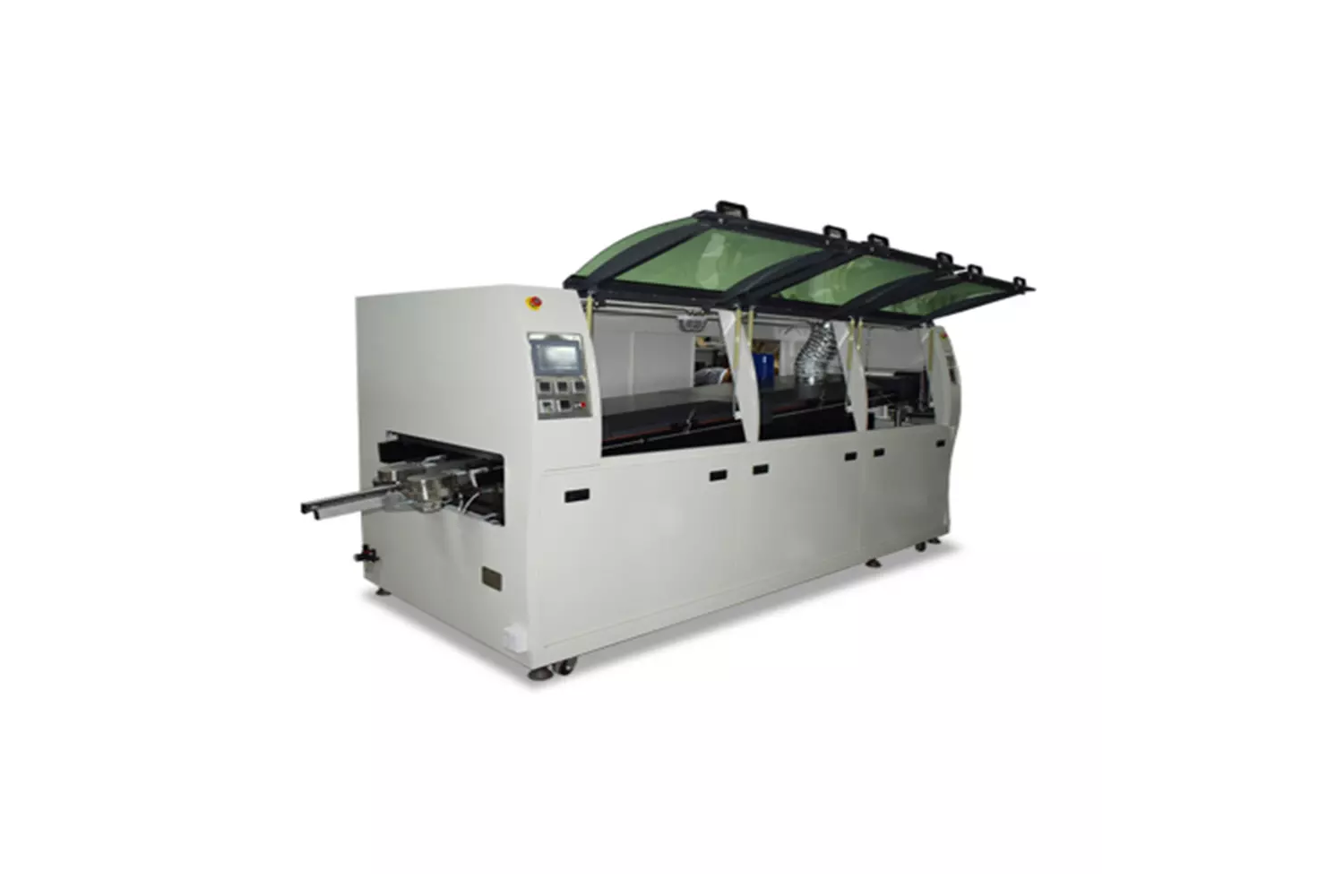

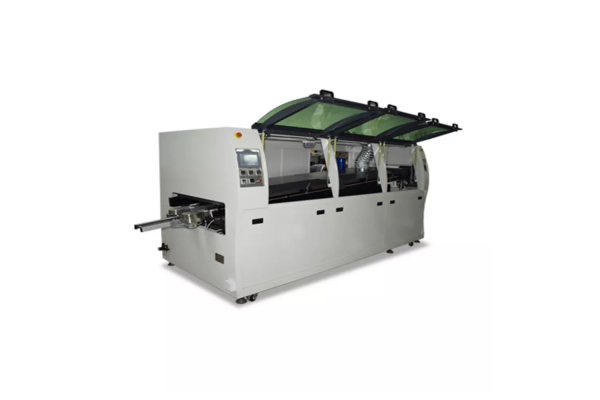

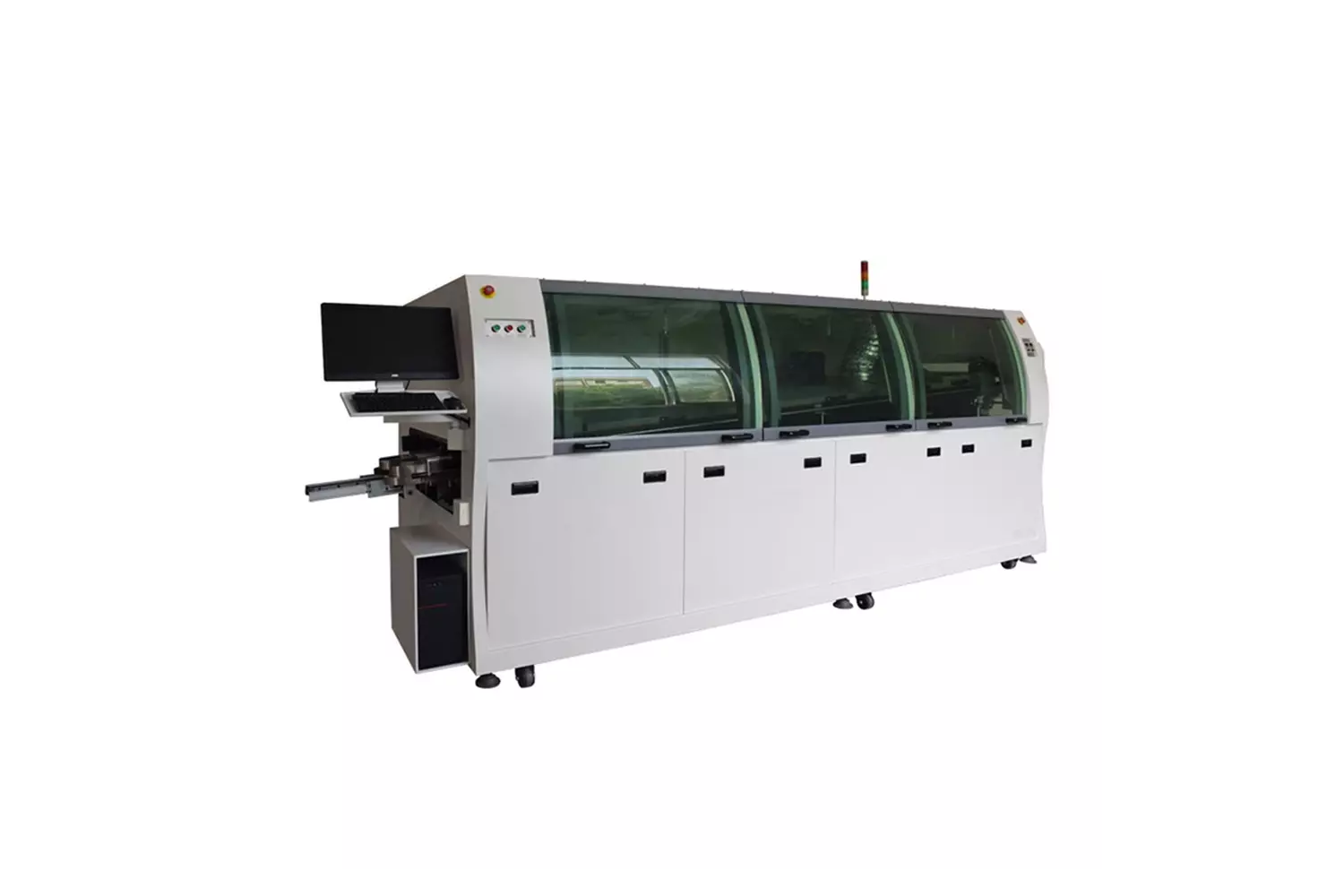

LT DIP series wave soldering machine

LT DIP series wave soldering machine

Features:

LT series DIP wave soldering machine developed by Longting SMT team,

LT series DIP wave soldering is a special form of wave soldering invented to meet the development requirements of through-hole components soldering. It is mainly suitable for the soldering of through-hole components in high-end electronic products. For example: military electronic products, automotive electronics, switching power supply products and other industries which require higher soldering reliability.LT series wave soldering is a high performance equipment developed and assembled in China.

We have different models. You can choose according to your requirements.

Specification:

Model LTS200 LTS250 LTS250H LTS300
Widthofpassingplate Max200mm Max250mm Max250mm Max300mm
Meltingcapacityoftinfurnace 135KG 200KG 200KG 280KG
Preheating length 400mm(passage) 450mm(passage) 800mm(Twoparagraphs) 1500mm(three-section)
crestheight 12mm 12mm 12mm 12mm
Leglengthofover-plateelement. 10mm 10mm 10mm 10mm
TransportheightofPCBboard. 750±20mm 750±20mm 750±20mm 750±20mm
grosspower 8KW 8KW 10KW 15KW
servicerating 2KW 2KW 3.5KW 5KW
Tinfurnacepower 6KW 6KW 6KW 9KW
Preheatingpower 2KW 2KW 4KW 6KW
Preheatingpower 0.18KW 0.18KW 0.18KW 0.25KW
Controlmode Touch screencontrol system Touch screencontrol system Touch screencontrol system Touch screencontrol system
Rack dimensions 1300*1050*1350mm 1400*1200*1500mm 1800*1200*1500mm 2800*1200*1600mm
outline dimension 2100*1050*1450mm 2200*1200*1600mm 2600*1200*1600mm 3600*1200*1700mm
PCB transport speed 0-1.2m/min 0-1.2m/min 0-1.5m/min 0-1.8m/min
Preheating zone Temperature Room temperature-130℃ Room temperature-130℃ Room temperature-150℃ Room temperature-180℃
Heatingmode Hotair Hotair Hotair Hotair
Numberofcoolingzones 1 1 1 1
Coolingmode Axial fan cooling Axial fan cooling Axial fan cooling Axial fan cooling
Tinfurnacetemperature Room temperature-300℃ Room temperature-300℃ Room temperature-300℃ Room temperature-300℃
Transportdirection Left→right Left→right Left→right Left→right
Temperaturecontrolmode PID+SSR PID+SSR PID+SSR PID+SSR
Controlmodeofwholemachine Mitsubishi PLC+TouchScreen Mitsubishi PLC+TouchScreen Mitsubishi PLC+TouchScreen Mitsubishi PLC+TouchScreen
Flux capacity Max5.2L Max5.2L Max5.2L Max5.2L
Spray mode Stepper motor+ST-6. Stepper motor+ST-6. Stepper motor+ST-6. Stepper motor+ST-6.
Power supply 3-phase5-wiresystem380V50HZ.
(can be connected to 220V)
3-phase5-wiresystem380V50HZ.
(can be connected to 220V)
3-phase5-wiresystem380V50HZ.
(can be connected to 220V)
3-phase5-wiresystem 380V50HZ
Gassource 4-7KG/CM212.5L/Min 4-7KG/CM212.5L/Min 4-7KG/CM212.5L/Min 4-7KG/CM212.5L/Min
Weight 400KG 600KG 800KG 1000KG



Model LTS350 LTS635 LTS635H
Widthofpassingplate Max350mm Max350mm Max350mm
Meltingcapacityoftinfurnace 320KG 380KG 450KG
Preheating length 1800mm(three-section) 1800mm(three-section) 2000mmFoursections,independentcontrol,hotairloop)
crestheight 12mm 12mm 12mm
Leglengthofover-plateelement. 10mm 10mm 10mm
TransportheightofPCBboard. 750±20mm 750±20mm 750±20mm
grosspower 18KW 18KW 25KW
servicerating 6KW 6-8KW 5KW
Tinfurnacepower 10KW 10KW 12KW
Preheatingpower 7.5KW 9KW 10KW
Preheatingpower 0.37KW 0.37KW 0.37KW
Controlmode Touch screencontrol system Computer control Computer control
Rack dimensions 3200*1300*1600mm 3200*1350*1600mm 3600*1400*1650mm
outline dimension 4000*1300*1700mm 4000*1350*1700mm 4500*1400*1750mm
PCB transport speed 0-2m/min 0-2m/min 0-2m/min
Preheating zone Temperature Room temperature-180℃ Room temperature-180℃ Room temperature-180℃
Heatingmode Hotair Hotair Hotair
Numberofcoolingzones 1 1 1
Coolingmode Axial fan cooling Axial fan cooling Axial fan cooling
Tinfurnacetemperature Room temperature-300℃ Room temperature-300℃ Room temperature-300℃
Transportdirection Left→right Left→right Left→right
Temperaturecontrolmode PID+SSR PID+SSR PID+SSR
Controlmodeofwholemachine Mitsubishi PLC+TouchScreen Computer control Computer control
Flux capacity Max5.2L Max5.2L Max5.2L
Spray mode Stepper motor+ST-6. Stepper motor+ST-6. Stepper motor+ST-6.
Power supply 3-phase5-wiresystem 380V50HZ 3-phase5-wiresystem 380V50HZ 3-phase5-wire system 380V50HZ
Gassource 4-7KG/CM212.5L/Min 4-7KG/CM212.5L/Min 4-7KG/CM212.5L/Min
Weight 1200KG 1200KG 1500KG
