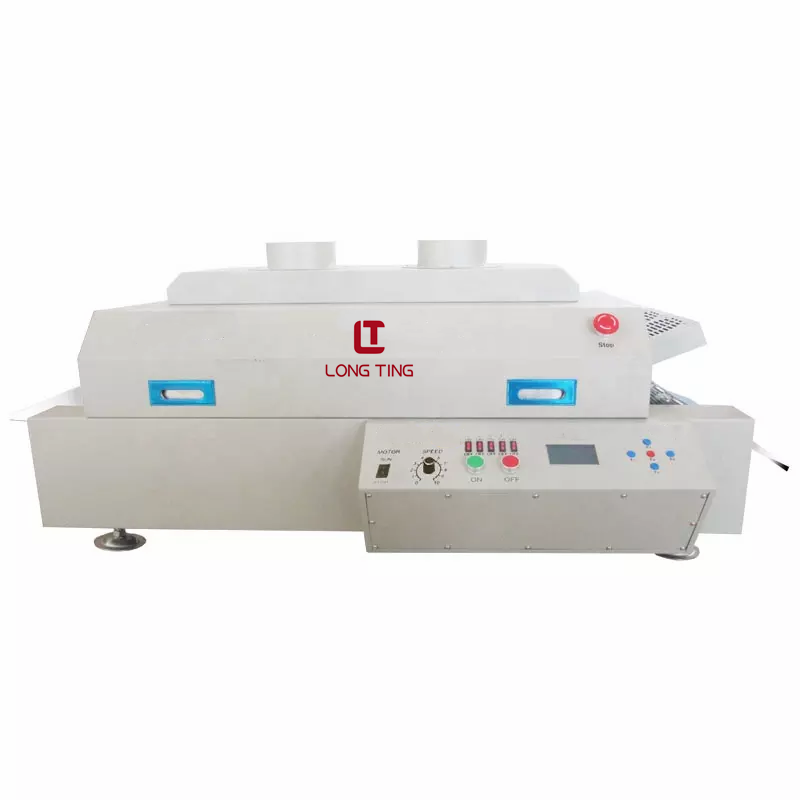

LT RF3 Reflow Oven 5 Zone benchtop type

LT RF3 Reflow Oven 5 Zone benchtop type

Specification:

Product name 5 zone crawler-type reflow oven
Model LT RF3
The heating zone quantity Upper3/down2
The length of the heating zone 960 mm
The heating type intelligent level sirocco and rapid infrared heating
The cooling zone quantity 1
Maximum width of PCB board 300 mm
The operation direction left→right
Delivery Options Net transmission chain transmission
The speed of conveyor belt 0-1600 mm/min
The power supply Three phase 5 line 380 V 50/60 Hz
Peak Power 4.5 kw
Heating up time Around 15 mins
Temperature control range Room temperature to 350 ℃
Temperature control mode PID closed-loop control
Temperature control accuracy ±3
PCB temperature distribution deviation ±2
Overall Dimensions 1450×630×470
Machine Net Weight 90 kg
