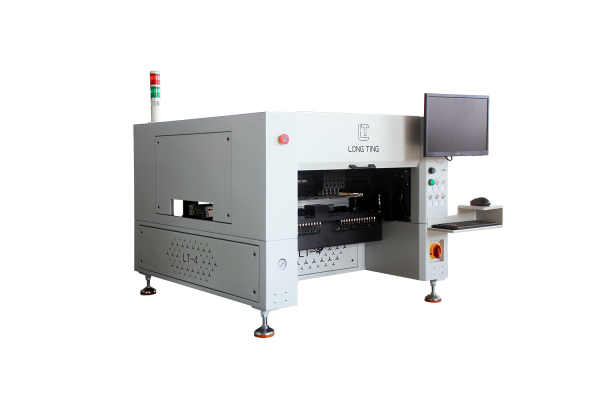

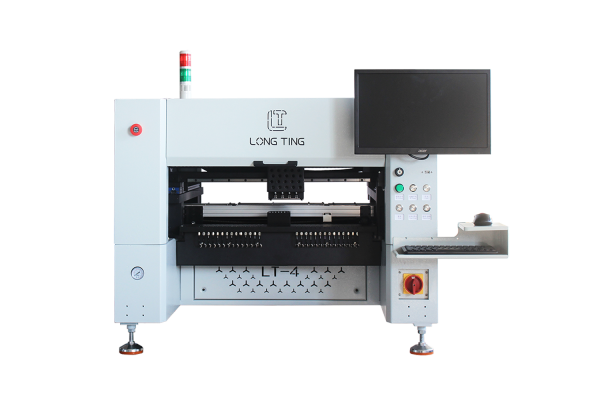

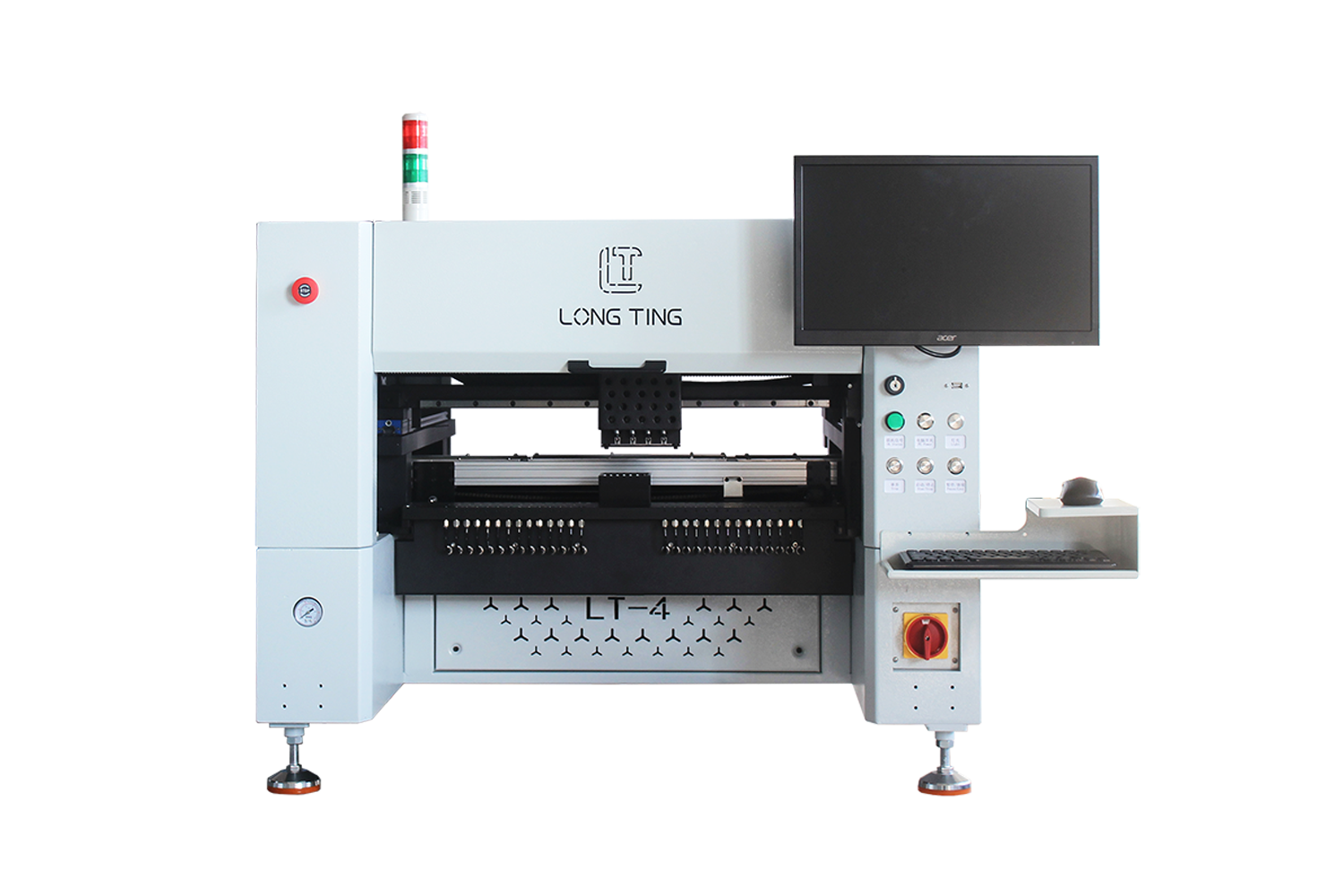

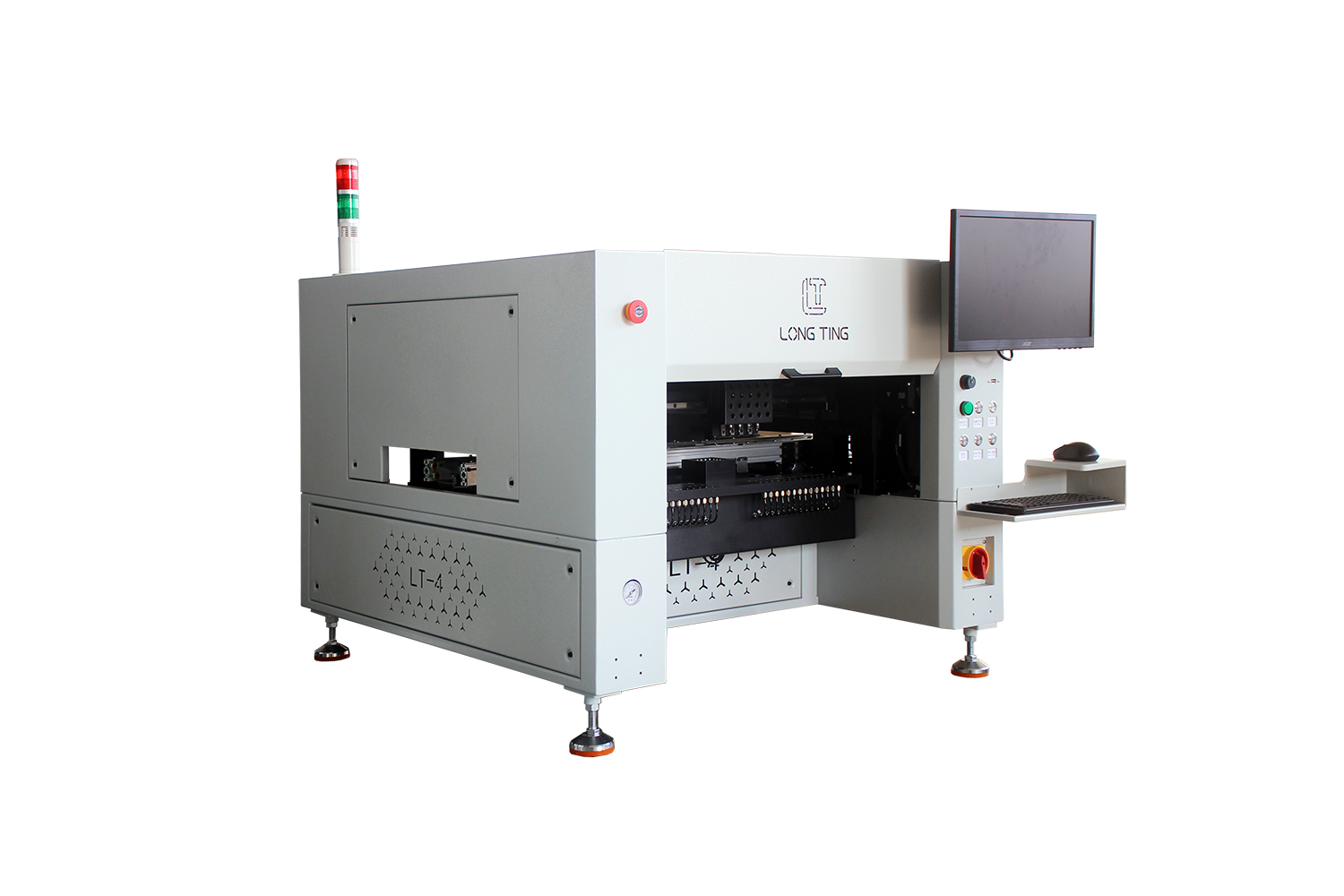

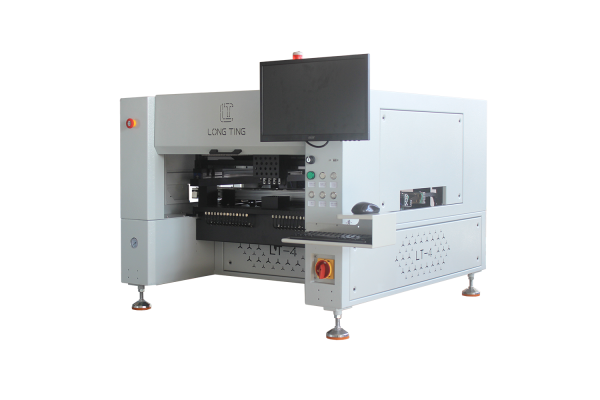

LT4 Pick and place machine

LT4 Pick and place machine

Features:

  • Desktop & Automated design
  • Capacities up to 9,500CPH per hour
  • Visual Processing Algorithms Technologies
  • Superior accessoriesbrands assistance
  • Autonomoussoftware based on simplified configurations
  • Sensitivityresponse and conversation with family facilities
  • Broadest component range and board size capabilities
  • Premiumadvanced tool options
  • Long warranty period for usable life
  • Minimalcost of entry and maintenance

Description

  • LT4 Desktop & Automated pick and place mounter,developed for small mess production, trial production and for engineers to test PFEMA and DFEMA. Individual wok performance and work with family relevant SMT facilities both smartly.
  • 50 pieces feeder slots satisfy demand of a production running, the Visual Processing Algorithms Technologies are used in autonomoussoftware, accurately mount components from 0201, BGA, precise ICs and various special shaped components . Usable in multi area for home appliances, power supply, high-end LED lighting, intelligent toys, automotive electronics, consumer electronics, aviation electronic information and other industries.

Specification:

Model LT4
Max applicable PCB 50*50mm~350x350mm
XY moving range 410*700mm
Z moving range ±15mm
Placement head quantity 4
Mounting capability Vision Off: 11000pcs/h
Vision On: 9500pcs/h
Mounting accuracy 0.025mm
Applicable components 0201,0402,0603,0805,sop8 etc.
Components supply Tape reel. bulk package(IC)tubes
PCB transfer direction Left→Right
Control System servo motor+TBI Screw Rod
Tape width 8mm. 12mm. 16mm. 24mm
Feeders loading ability 50 slots (YAMAHA Feeder is available)
Machine dimension L1200xW1440xH920mm
Visual camera 1 PCB inspection camera , 1 Flying camera
Visual camera(down) Automatic identify the mark point
Visual camera(up) Automatic adjust the offset
Vacuum pump quality External air pump
Power supply AC220V/AC110V
Average working Power 360W
Gross weight 271KG
Packing size 1.35CBM
