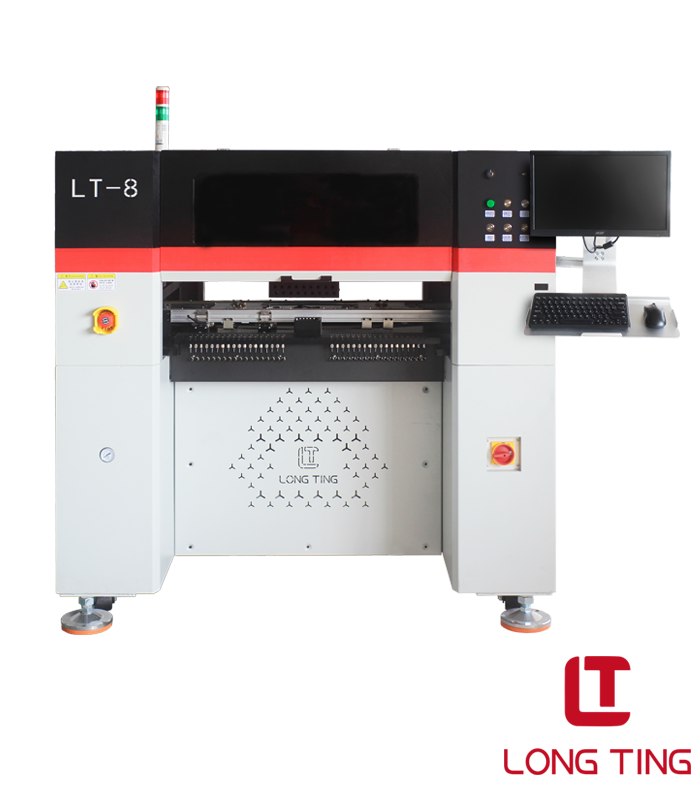

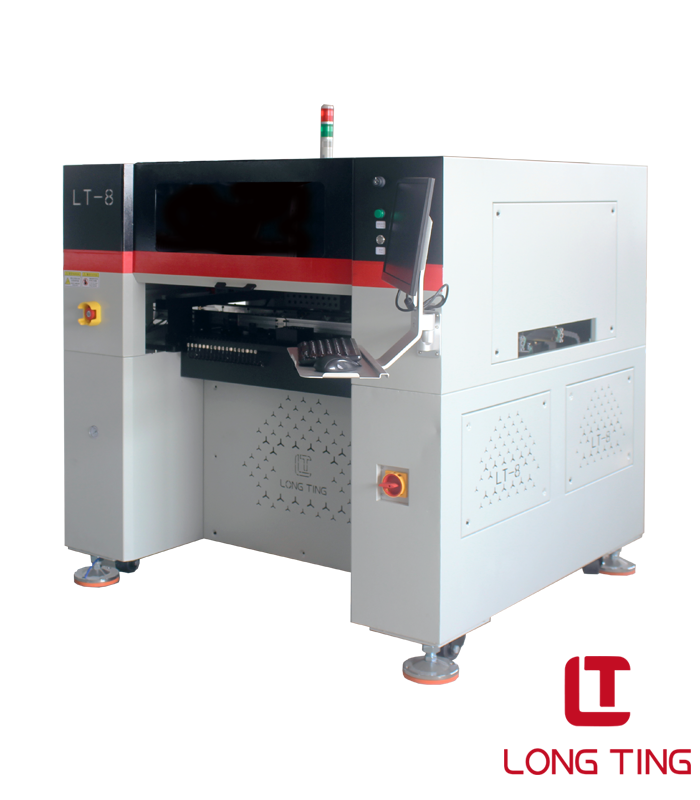

LT8 pick and place machine

LT8 pick and place machine

Features:

  • Multi-efficiencynozzle management
  • Capacities up to 16,500 CPH per hour
  • Complementary speed and universal instrumentsmodel
  • Superior accessoriesbrands assistance
  • Autonomoussoftware based on simplified configurations
  • Sensitivityresponse and conversation with family facilities
  • Broadest component range and board size capabilities
  • Premiumadvanced tool options
  • Long warranty period for usable life
  • Minimalcost of entry and maintenance

Description

  • LT8 Automated pick and place mounter,leverages Surface Mount Technologies high-end base technologies to develop optimization and improvement to made out this superior model, which is easy operating and minimal cost of entry to make the value added, the superior world accessories brands assistance, Sensitivity response system easy to group others relevant SMT facilities to connect line conversation smartly.
  • Visual Processing Algorithms Technologies are used in autonomoussoftware, accurately mount components from 0201, BGA, precise ICs and various special shaped components . Usable in multi area for home appliances, power supply, high-end LED lighting, intelligent toys, automotive electronics, consumer electronics, aviation electronic information and other industries.

Specification:

Model LT8
Max applicable PCB size 450*350mm
Max xy moving range 720*760mm
Max z moving range 20 or 32mm
Placement head quantity 8
Max mounting capability Vision on: 13000pcs/h
Vision off: 16000pcs/h
Feeder slots capability 80 (YAMAHA Feeder is available)
Applicable component Smallest size:0201 inch
Largest size:22*22mm
Max Height 15mm
Visual camera  Flying  HD CCD camera
Power supply 220V
Net Weight 1015kg
Machine Dimension 1310*1140*1390mm
Packing size 3.52 CBM
