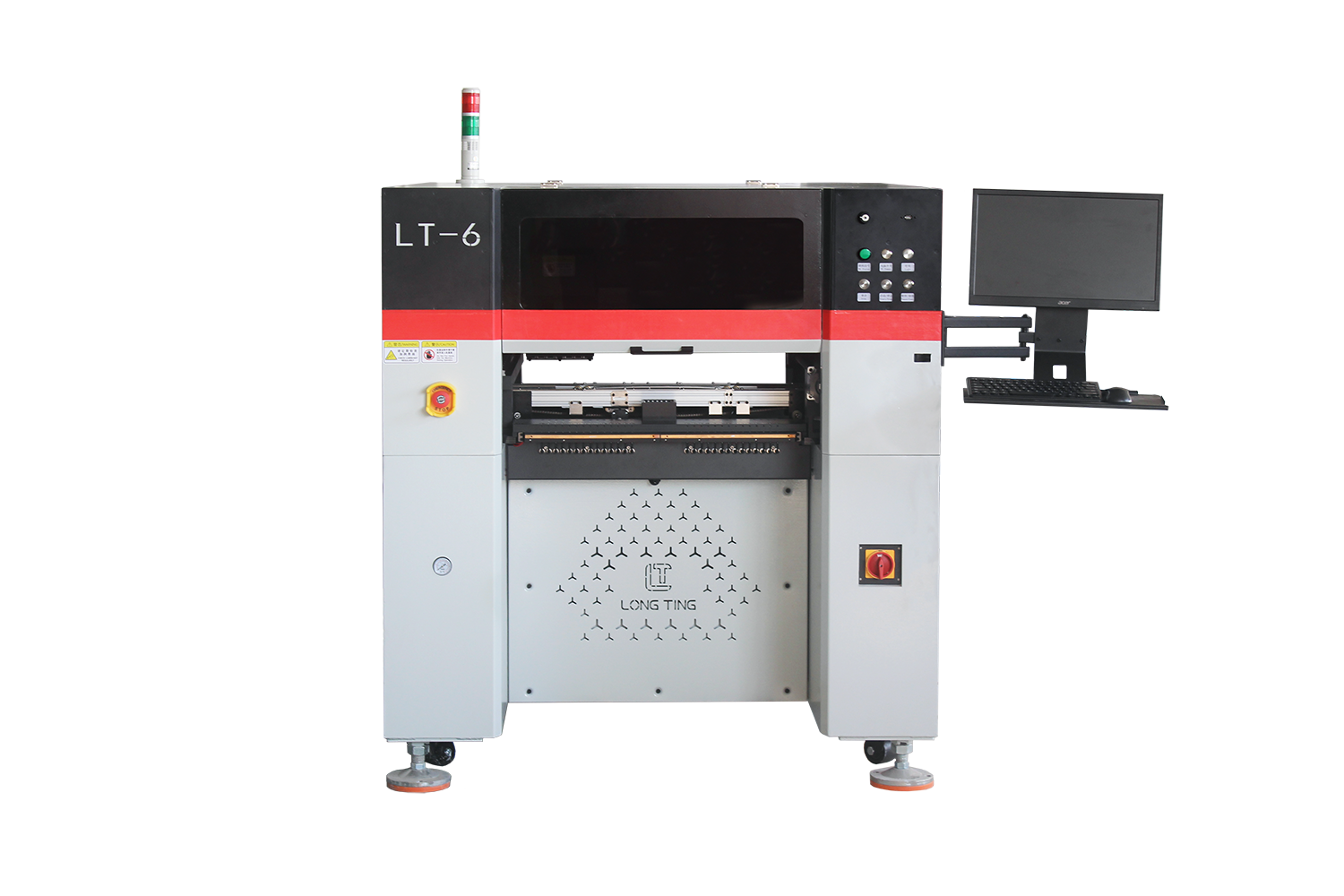

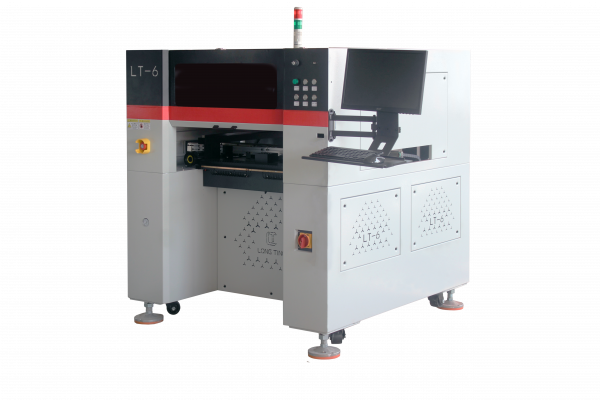

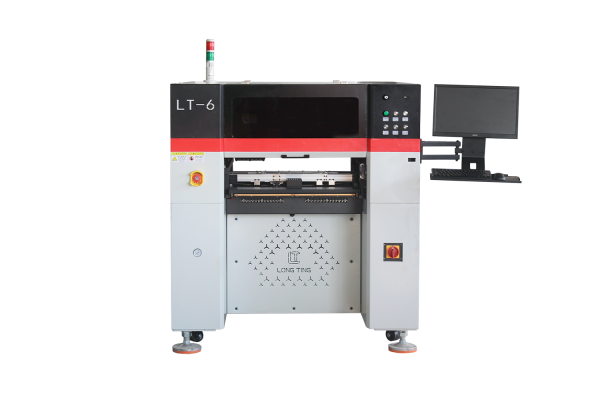

LT6 pick and place machine

LT6 pick and place machine

Features:

  • Multi-efficiencynozzle management
  • Capacities up to 13,000CPH per hour
  • Visual Processing Algorithms Technologies
  • Superior accessoriesbrands assistance
  • Autonomoussoftware based on simplified configurations
  • Sensitivityresponse and conversation with family facilities
  • Broadest component range and board size capabilities
  • Premiumadvanced tool options
  • Long warranty period for usable life
  • Minimalcost of entry and maintenance

Description

  • LT6 Automated pick and place 6 heads mounter,leverages Surface Mount Technologies high-end base technologies to develop optimization and improvement to made out this superior model, which is easy operating and minimal cost of entry to make the value added, the superior world accessories brands assistance, Sensitivity response system easy to group others relevant SMT facilities to connect line conversation smartly.
  • Visual Processing Algorithms Technologies are used in autonomoussoftware, accurately mount components from 0201, BGA, precise ICs and various special shaped components . Usable in multi area for home appliances, power supply, high-end LED lighting, intelligent toys, automotive electronics, consumer electronics, aviation electronic information and other industries.

Specification:

Model LT6
Max applicable PCB size 350*350mm/600mm
Max xy moving range 700*500mm
Max z moving range 20mm
Placement head quantity 6
Max mounting capability Vision on: 8500pcs/h
Vision off: 12000pcs/h
Feeder slots capability 63 (YAMAHA Feeder is available)
Applicable component Smallest size:0201 inch
Largest size:22*22mm
Max mounting Height 15mm
Visual camera  Flight  HD CCD camera
Power about1200W
Power supply 220V
Net Weight 854kg
Gross Weight 935kg
Machine Dimension 1325*1120*1320mm
Packing size 2.70CBM
