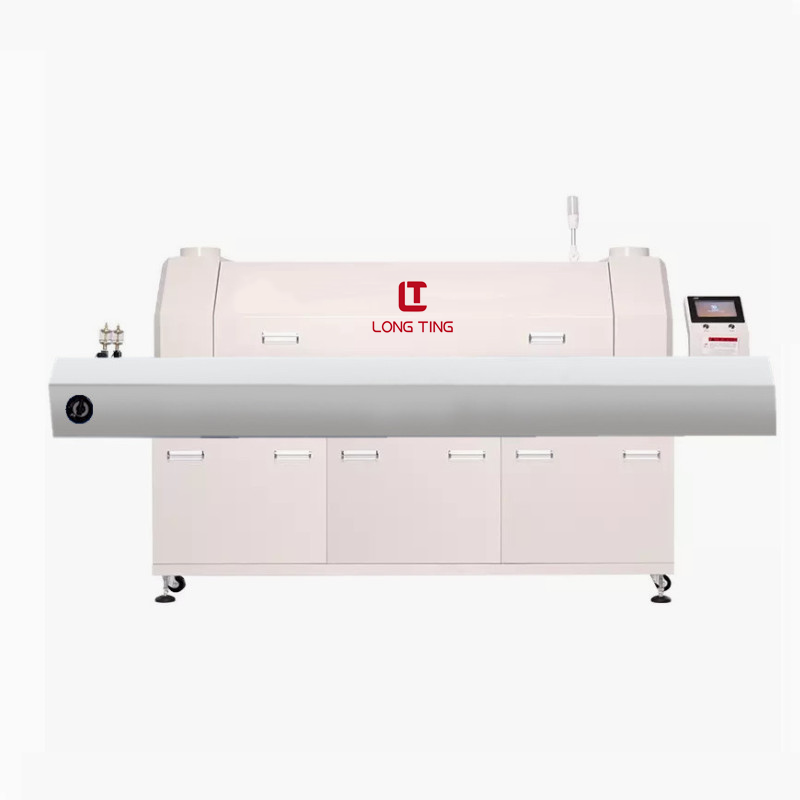

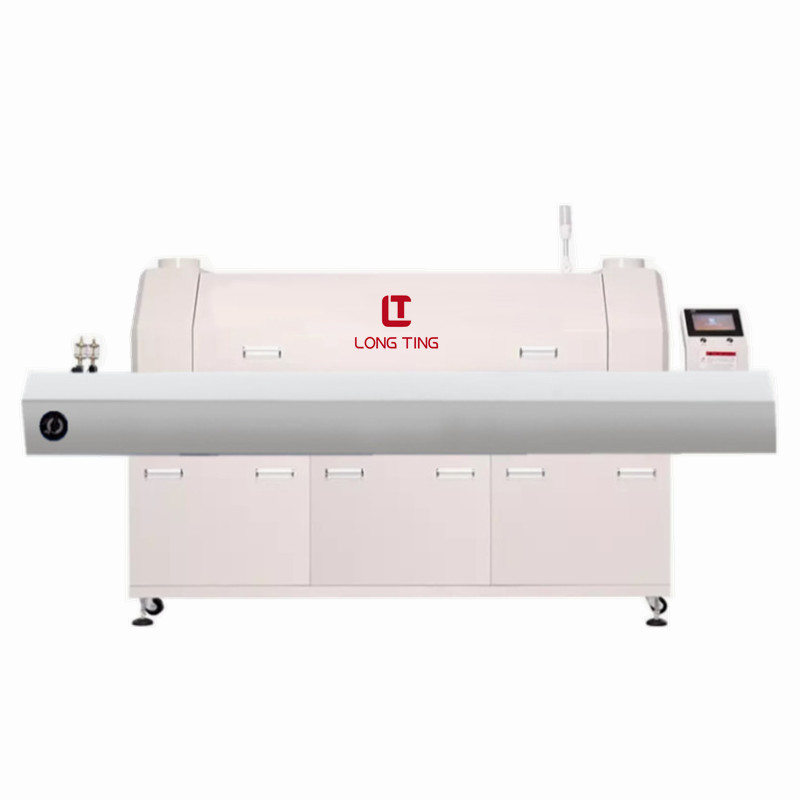

LT RF8 Reflow Oven with rail 8 Zones

LT RF8 Reflow Oven with rail 8 Zones

Model LT RF8
Heat zone numbers 8 zones(Up4, Down4)
Heat method Hot wind
Cooling zone numbers 3 Ventilation cooling
Length of heating zone 1400mm
Width of net belt 450mm
PCB size Max. 350mm
Height of net belt 860~900mm
Transport speed of net belt 160~1350mm/min(Analog quantity adjusting)
Transport direction of net belt Left to right( right to left)
Starting power 15KW
Working power 3KW
Input supply power Three-phase five-wire 380±10% 50HZ
Heat up time About 20 mins
Time of passing through the machine 3.5 to 5.5 mins
Range of temperature control Indoor temperature to 400 degrees
Method of temperature control PID close cycle control
Net weight 450kg
Outline size 2720x820x1360mm
