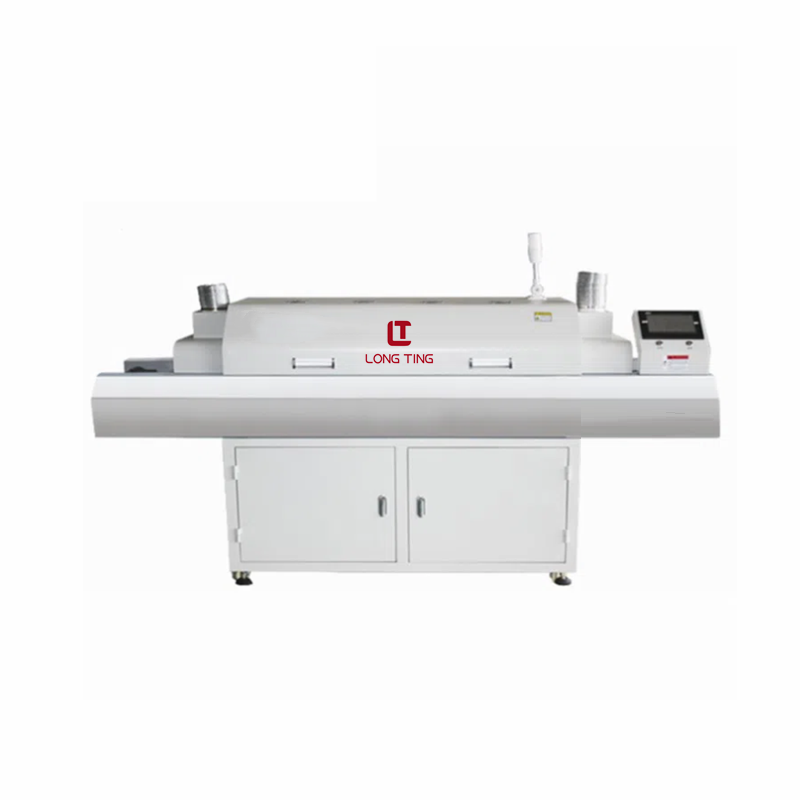

LT RF6 Reflow Oven 6 Zone with cabinet

LT RF6 Reflow Oven 6 Zone with cabinet

Specification:

Model LT RF6
Heat zone numbers 6 zones(Up3, Down3)
Heat method Hot wind
Cooling zone numbers Two natural air cooling
Length of heating zone 1060mm
Width of net belt 300mm
PCB size 280mm
Height of net belt 900±20mm
Transport speed of net belt 160~1350mm/min(Analog quantity adjusting)
Transport direction of net belt Left to right( right to left)
Starting power 9KW
Working power 3KW
Input supply power Three-phase five-wire 380±10% 50HZ
Heat up time About 20 mins
Time of passing through the machine 3.5 to 5.5 mins
Range of temperature control Indoor temperature to 400 degrees
Method of temperature control PID close cycle control
Net weight 215kg
Outline size 2100x680x1200mm
