Features:

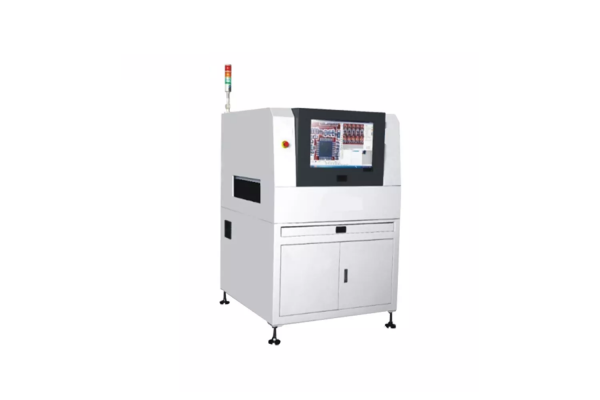

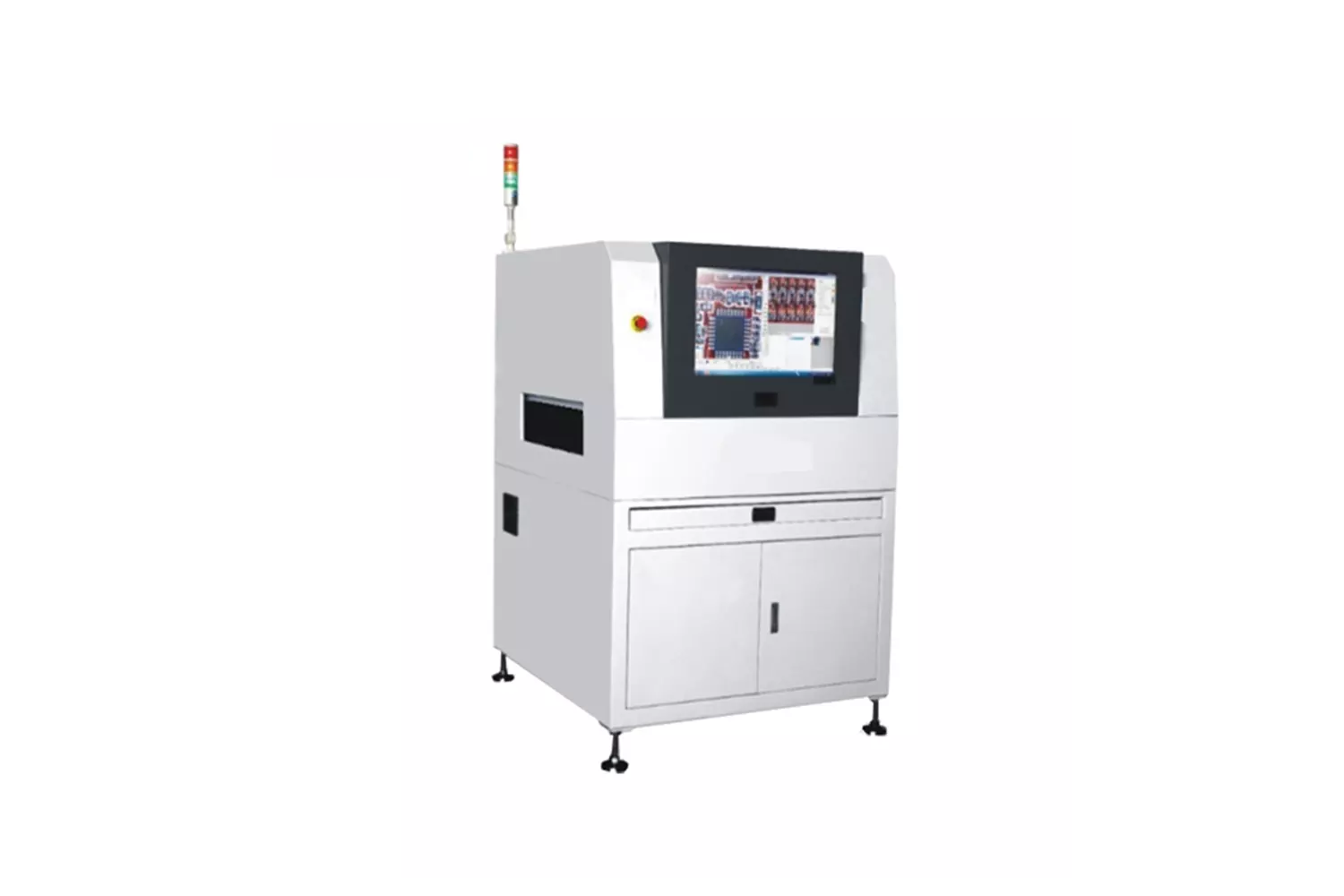

LTE800 Automatic Optical Inspection machine is the latest high-precision AOI equipment  developed by Longting SMT team,

It can doing Statistical shape modeling, Learn OK samples, Automatic Establishment of standard image, identification data and error thresholds.

Graphical programming, bulit-in component library, automatic generation of detection frame according to component shape selection
criteria, precise automatic positioning, micro-position trimming, and rapid process .

Specification:

Categories Item Specifications
Shipping PCB fiow direction Autpmstic, from left to right, can be changed
Width adjustment automatic
Orbit determination In front ( standard )
NG/OK signal Standard NG/OK sigal interface Standards
Visual recognition system Discrimination method Logic algorithm, picture comparison, color image contrast/contour contraet/binarization reference contrast, comprehensive
application, simple operation and programming
Camera CCD color camera ,resolution; 10 microns /point
Light source RGB ring LED structure light source
lmage processing speed 0201 CHIP >6ms
Processing time per picture >100ms
Test content Paste printing Presence,skewness,less tin,multiple tin,open circuit,pollution
Part defects Missing parts,offsets,skewed,tombstones,sideways, overtured parts,reverse polarity,wrong parts, broken parts
Solder joint defects Multiple tin. less tin, continus tin
Mechanical System PCB sise 25*25mm ~ 380*480mm , Special requirements can be customized
PCB thickness 0.5mm-2.5mm
PCB warpage 〈2mm With fixture assisted correction, special requirements can be customized.
Pare height 0.5-25mm, Special requirements can be customized
The smallest part 01005 element
X,Y platform Driving equipment Mitsubishi Servo Motor System
Accurate positioning 〈25um
Moving speed 700mm/s(MAX)
Software System Operating System Microsoft Win7 Pre-installation: Microsoft Win 7/Win10
Identification Control System Features Statistical shape modeling, Learn OK samples, Automatic Establishment of standard image, identification data and error thresholds
Operation Graphical programming, bulit-in component library, automatic generation of detection frame according to component shape selection
criteria, precise automatic positioning, micro-position trimming, and rapid process
Mark Point s 2 common Mark points can be selected to make multiple Mark function
Recognition speed 0.5S/PCS
QR Code Reading HONEYWELL (1900G) Read the QR code on the PCB through the camera of the device and link it with the repair station.(Optiona)
Control System Computer Intel CPU,DDR4 4G,SSD240G
Dispiay 24 inch LED display
Other parameters Mechanical dimension 1100mm*1200mm*1550mm
Weight 550 KG
Power supply AC 220V 50/60HZ, 1200W
