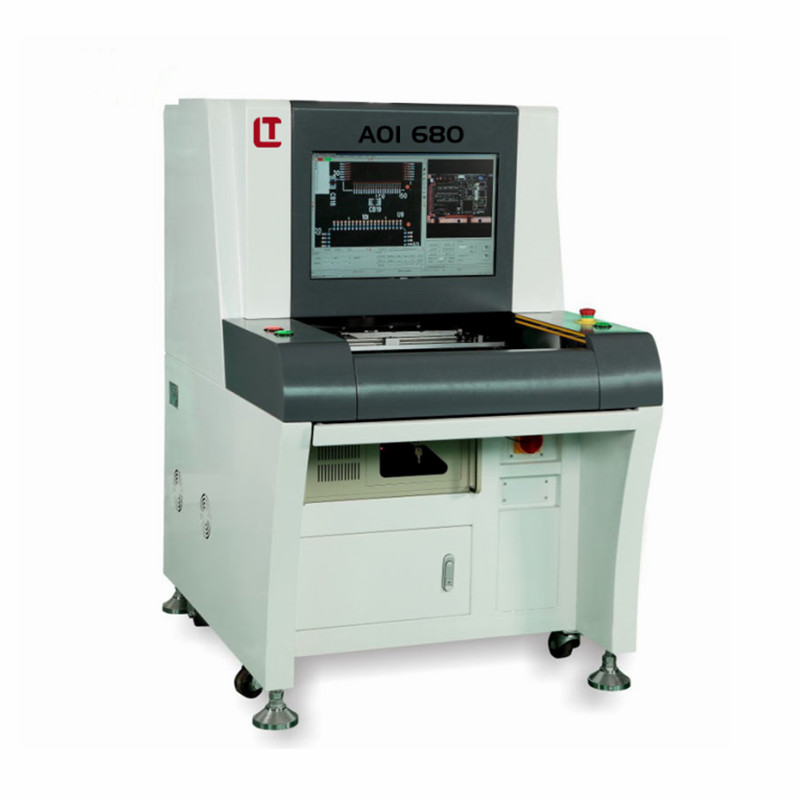

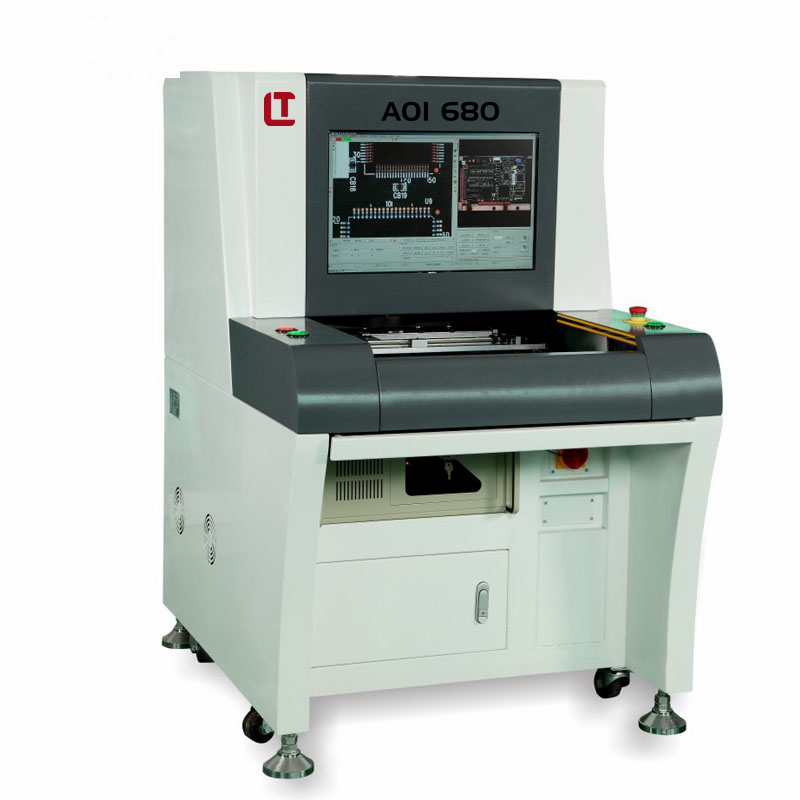

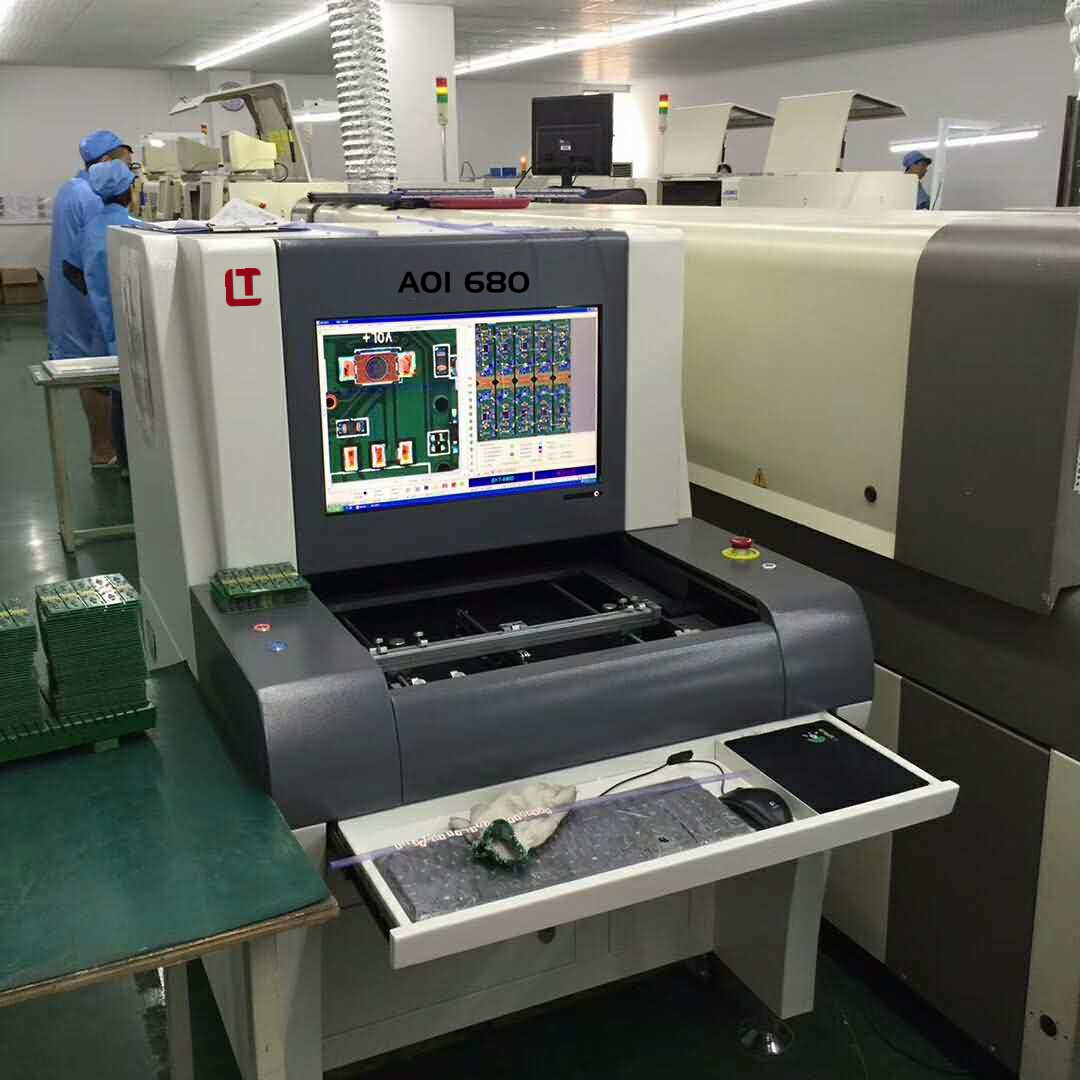

LT A680 offline pcb aoi machine

LT A680 offline pcb aoi machine

LT A680 offline pcb aoi machine
Application process:After stencil printing, after/before hot air reflow
Can test both sides and multiple PCBs simultaneously

The LT A680 offline AOI equipment can detect the high components on the component surface and the SMD components after reflow, and can effectively solve the detection requirements of the tinplate process, and can find the product defects with high precision. , The best choice for process requirements such as SMT reflow and component surface.

Since the brightness and position tolerances of the entire image can be corrected in real time like the online machine, it has the same stability and repeatability as the online machine. In addition, through the combination of rich algorithms and lighting, product defects can be detected with high precision.

  PCB Application Application process After stencil printing, after/before hot air reflow

Can test both sides and multiple PCBs simultaneously

PCB dimension 20×20mm-450×350mm
PCB thickness 0.3-5.0mm
PCB space top:≤30mm;bottom:≤45mm




Inspection

items

After stencil printing  Solder paste unavailability, insufficient or excessive solder paste, solder paste misalignment, solder paste bridging, stain , scratch and so on.
Before or after  reflow soldering Missing or excessive component, misalignment, uneven, edging defect, opposite mounting , wrong polarity, wrong or bad components.
Before or after DIP wave soldering Excessive or missing component, empty soldering, solder balls, solder misalignment, edging defect, bridging, IC NG, copper stain etc.






Visual system

Image system CCD camera, DAHENG 500 million px
Lighting system Three-channel white led light source or RGB light source
Resolution ratio 18um(FOV dimension:28.8 mm×21.6 mm)
Inspection mode Color calculation, color extraction, gray-scale operations, image matching, etc
Mechanical system X/Y driving system AC servo motor, Precision grinding ball screw
PCB fixing mode Auto fixture
Positioning accuracy <8 um
Moving speed 800mm/s(MAX)
Orbital adjustment Manual


Software system

Operation system Windows XP, ram 4GB
Interface language Chinese/English optional
Inspection output PCB ID, PCB description, component description,defect description, defect image
Power AC220±10%,50/60HZ,1KW
Operation temperature -10-40℃
Operation humidity 20-90%RH  non condensing
Machine dimension 900×1100×1300mm
