SMT Pick And Place Machine Nozzles Parts

SMT Pick And Place Machine Nozzles Parts

Nozzle Specification:

High quality SMT nozzlesfor China smt benchtop pick and place machines

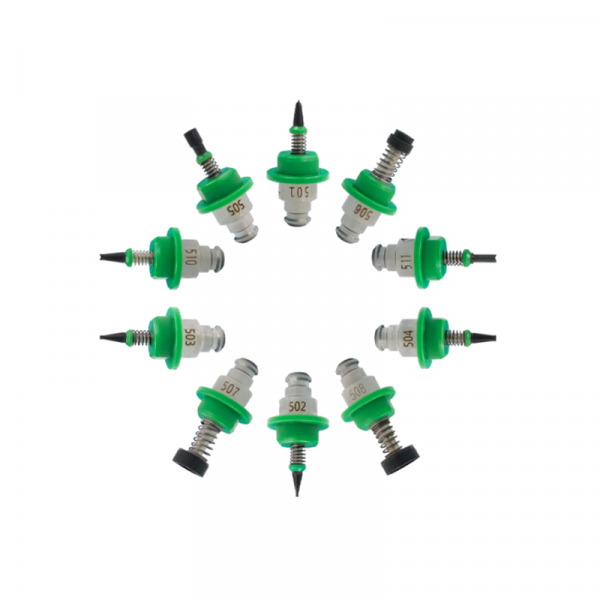

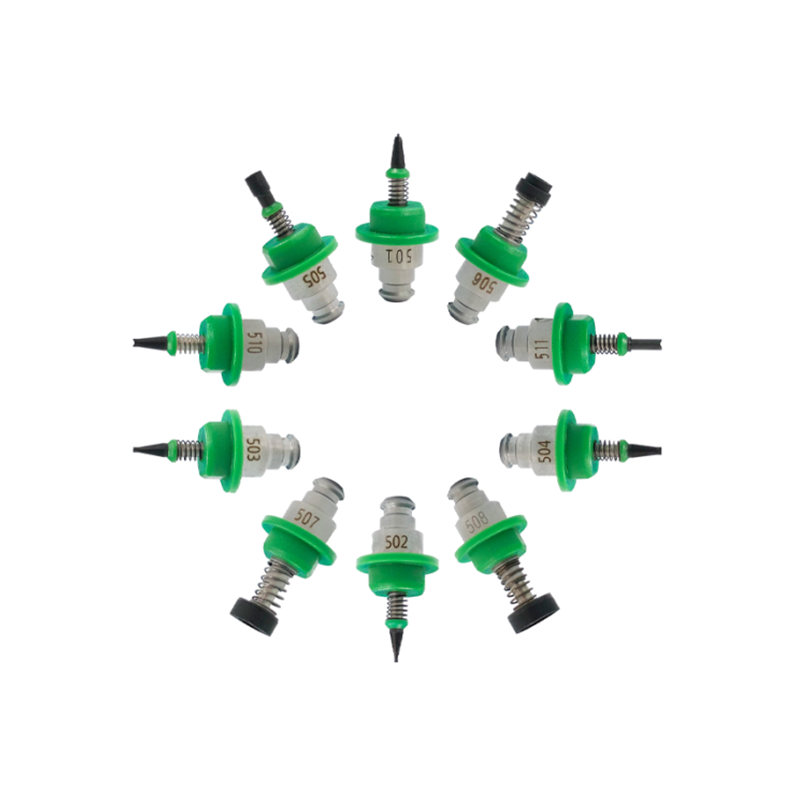

503, 504 n 505 are most popular open pnp nozzle in China.

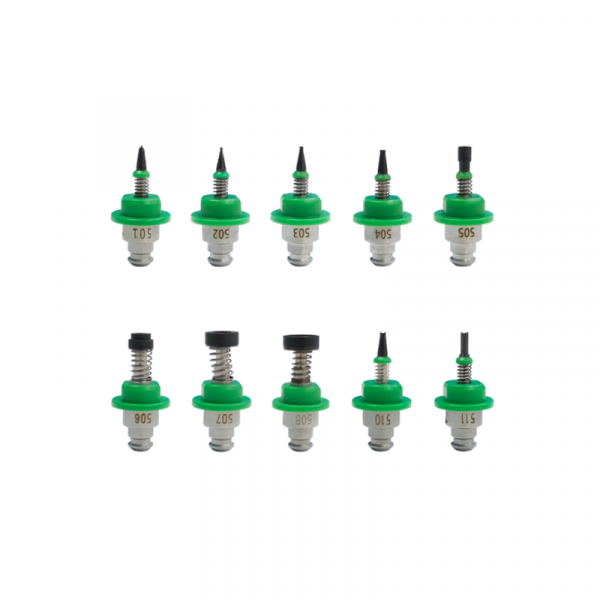

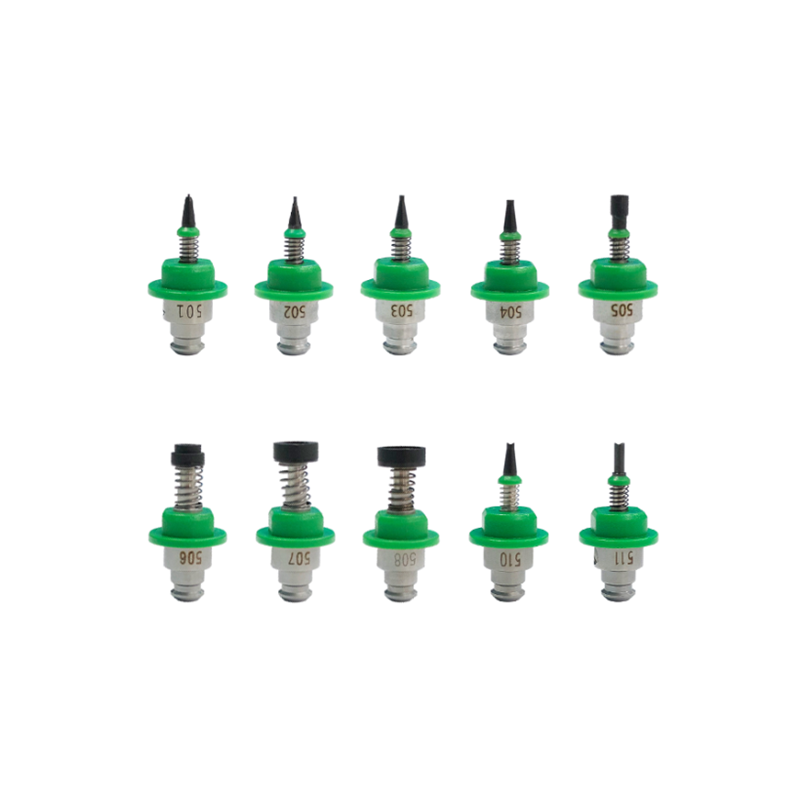

501 Nozzle for 0201
502 Nozzle for 0402
503 Nozzle for 0603,0805
504 Nozzle for 0805,1206,1210,2512
505 Nozzle for 3528,5050,SOP-8,3535 led
506 Nozzle for TQFP,SSOP
New supply 510 for 4148 Diode SMD, 511 for cylindrical resistor SMD
Green or black color

Nozzle model OD(mm) ID(mm)
501 0.8*0.4 φ0.25
502 φ0.7 φ0.4
503 φ1.0 φ0.6
504 φ1.6 φ1.0
505 φ3.5 φ1.8
506 φ5.0 φ3.2
507 φ8.5 φ5.0
508 φ9.5 φ8.0
