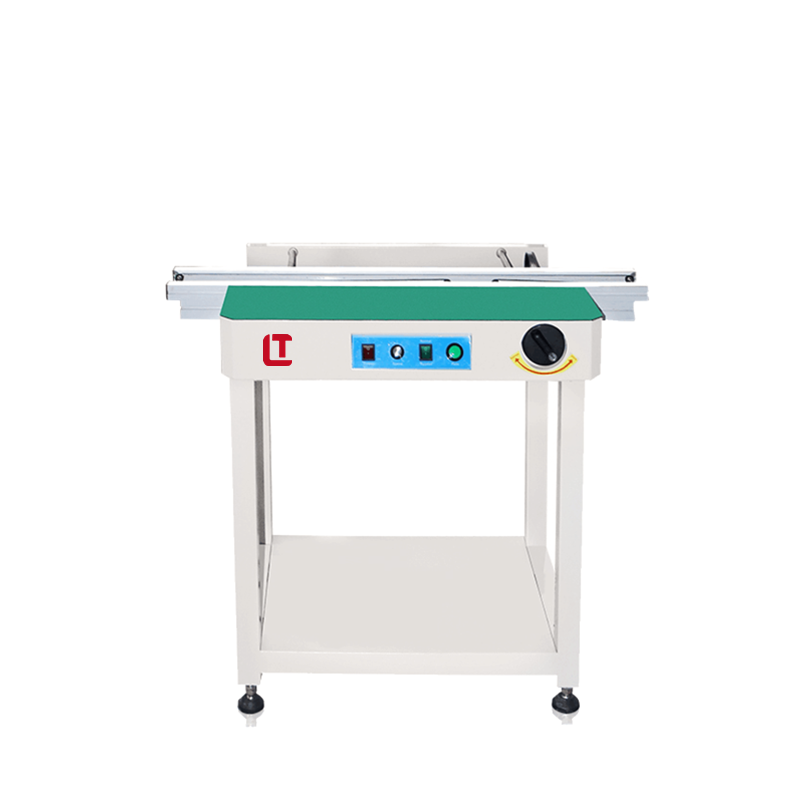

LT C series SMT Inspection PCB Conveyor

LT C series SMT Inspection PCB Conveyor

SMT Inspection Conveyor used for Connecting two functional devices among the SMT line,easing, inspection, testing PCBs,

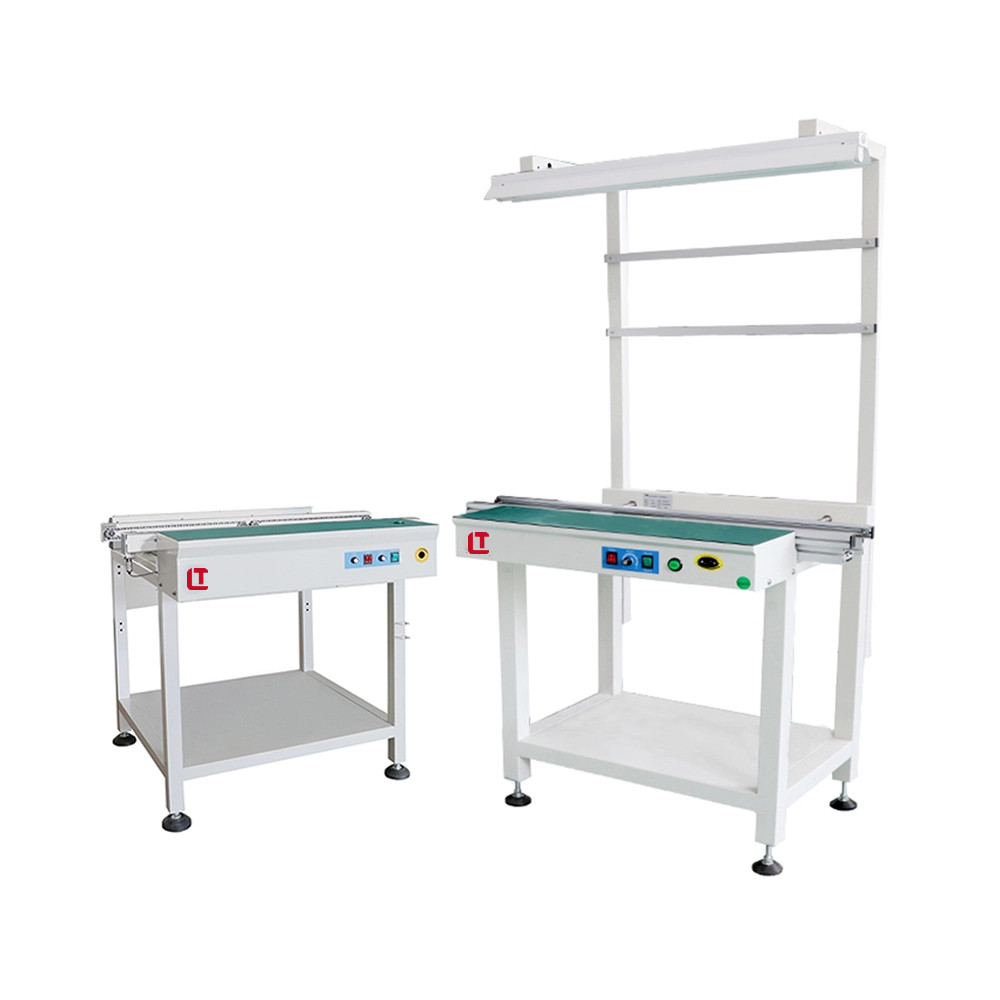

The standard model does not have a light stand. If you need to configure a light stand, please inform your customer manager.



Specification:

Model LTC50 LTC100 LTC120 LTC200
Rail Length(mm) 500 mm 1000 mm 1200 mm 2000 mm
Dimension (mm) 500*700*950 1000*700*950 1200*700*950 2000*700*950
PCB Width 50 to 350 mm 50 to 350 mm 50 to 350 mm 50 to 350 mm
PCB Direction L→R or R→L L→R or R→L L→R or R→L L→R or R→L
Speed Adjustable Adjustable Adjustable Adjustable
Control System PLC PLC PLC PLC
Communication SMEMA for in & out SMEMA for in & out SMEMA for in & out SMEMA for in & out
Power Supply AC 220V 50/60Hz AC 220V 50/60Hz AC 220V 50/60Hz AC 220V 50/60Hz
Weight 70 Kg 95 Kg 105 Kg 150 Kg
